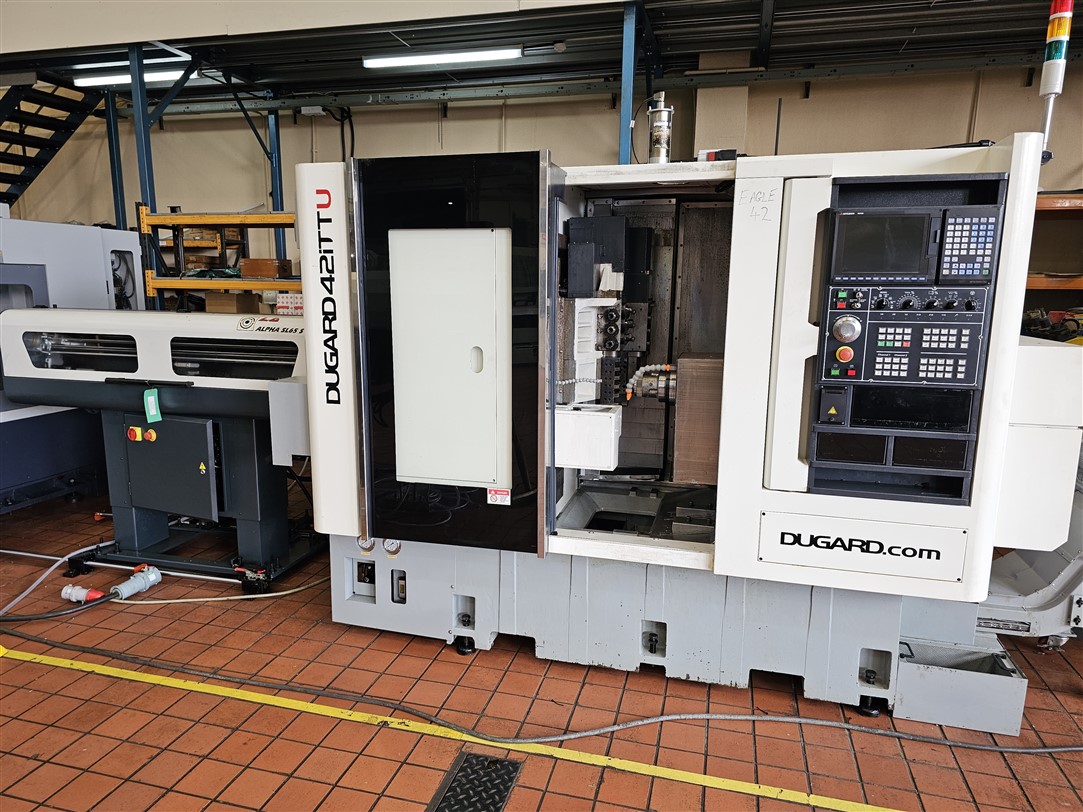

U28293 Dugard i42U Sub Spindle CNC Turning Centre
Machine Information
Used Dugard CNC turning centre with sub spindle, dual tooling, Y axis, Mitsubishi M700 control and 42 mm maximum bar capacity
Machine Features

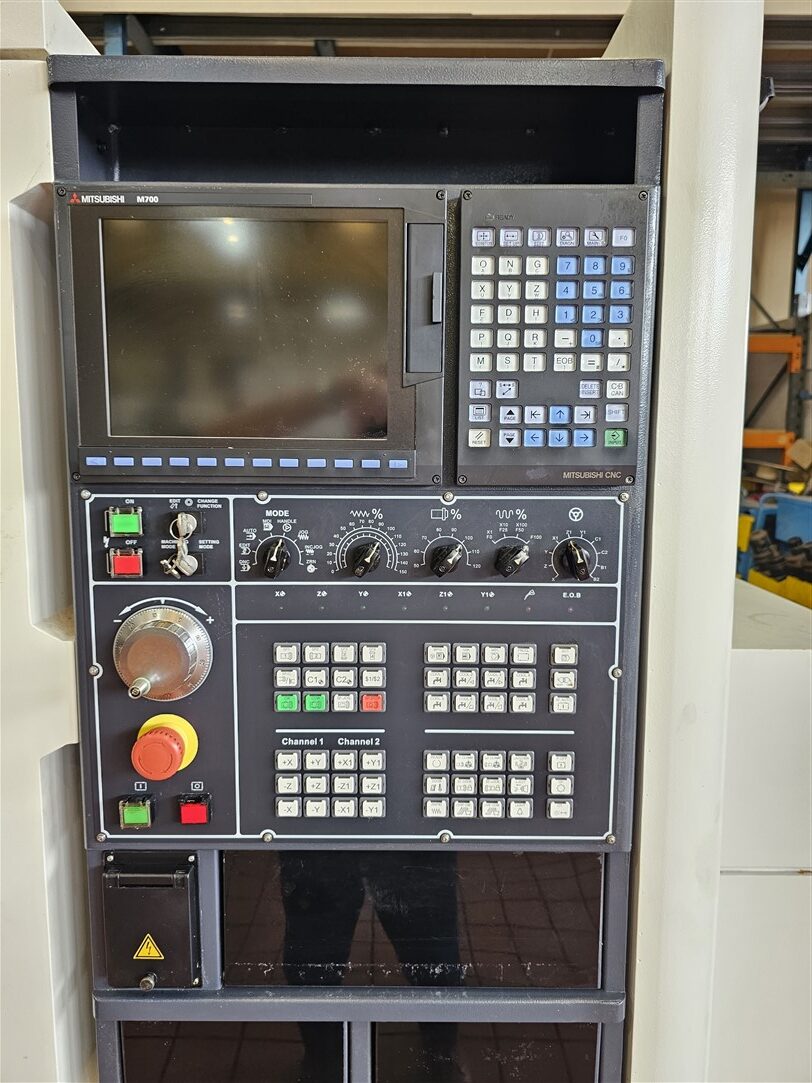

Mitsubishi M700 control
Dual tooling
Y axis
£29,500 + VAT
| 42mm maximum bar capacity |
| 250mm maximum turning length |
Related products
-

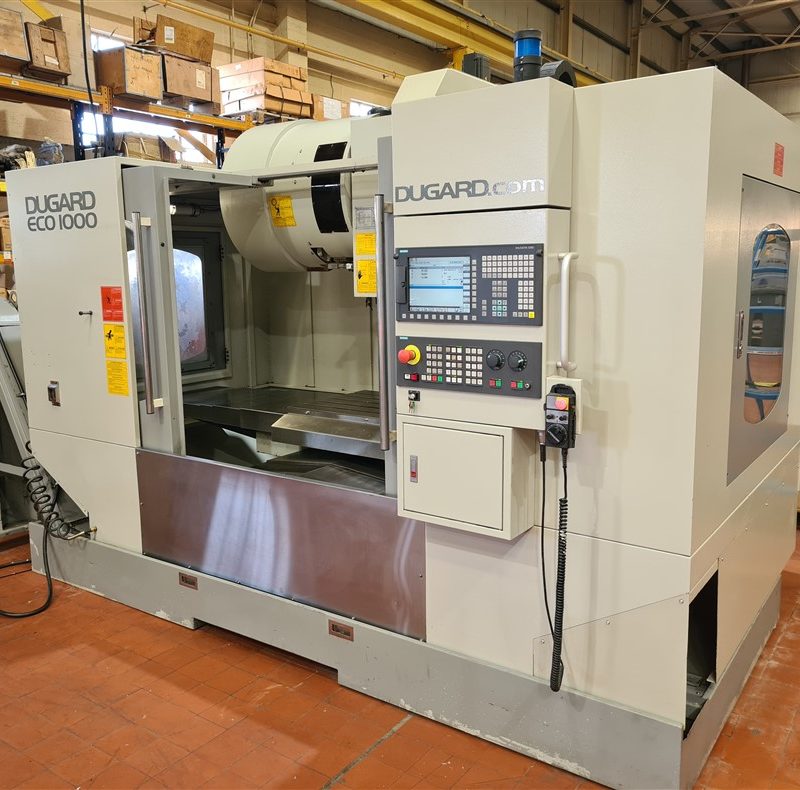

U28275 Dugard ECO 1000 Vertical Machining Centre
FIND OUT MOREUsed Dugard VMC with Siemens 828D control, 1000/600/600mm X/Y/Z axis, 80~8000rpm spindle speeds, BT40, 24 station ATC
-

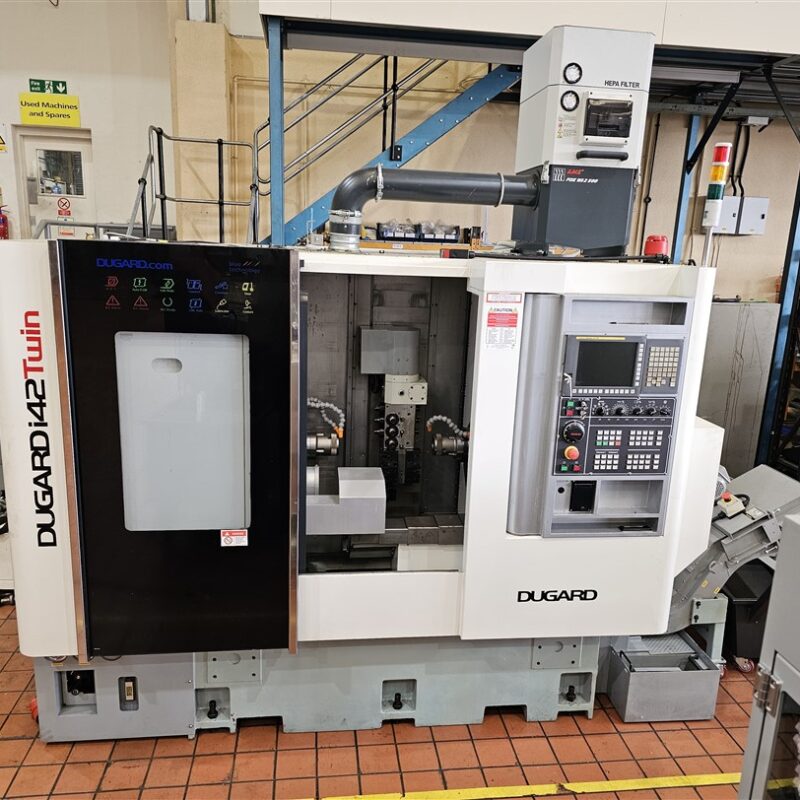

Ex Demo Dugard i42 Twin Sub Spindle CNC Turning Centre
FIND OUT MOREEx Demo Dugard CNC turning centre with sub-spindle, Y axis, 42mm bar capacity and Fanuc 0iTF control with automatic parts catcher and conveyor
-
U28279 Dugard Lunan 500MF CNC Lathe
FIND OUT MOREUsed multi-function CNC lathe – Siemens 828D control with Shopturn, 500mm swing over bed, 280mm swing over cross slide, 500mm turned diameter, 250mm cross travel, 7.5kW main motor, 4 position programmable electric toolpost
Superior-quality CNC Machines
Made in Taiwan
SPECIFICATION
| Maximum bar capacity | 42mm |
| Maximum turning length | 250mm |
| Main Spindle | |
| Spindle collet chuck type | KK5-173E/42B |
| Spindle nose | A2-5 |
| Spindle speed | 4000rpm |
| C axis minimum programmable increment | 0.001° |
| Spindle motor (cont/30min) | 7.5kQ |

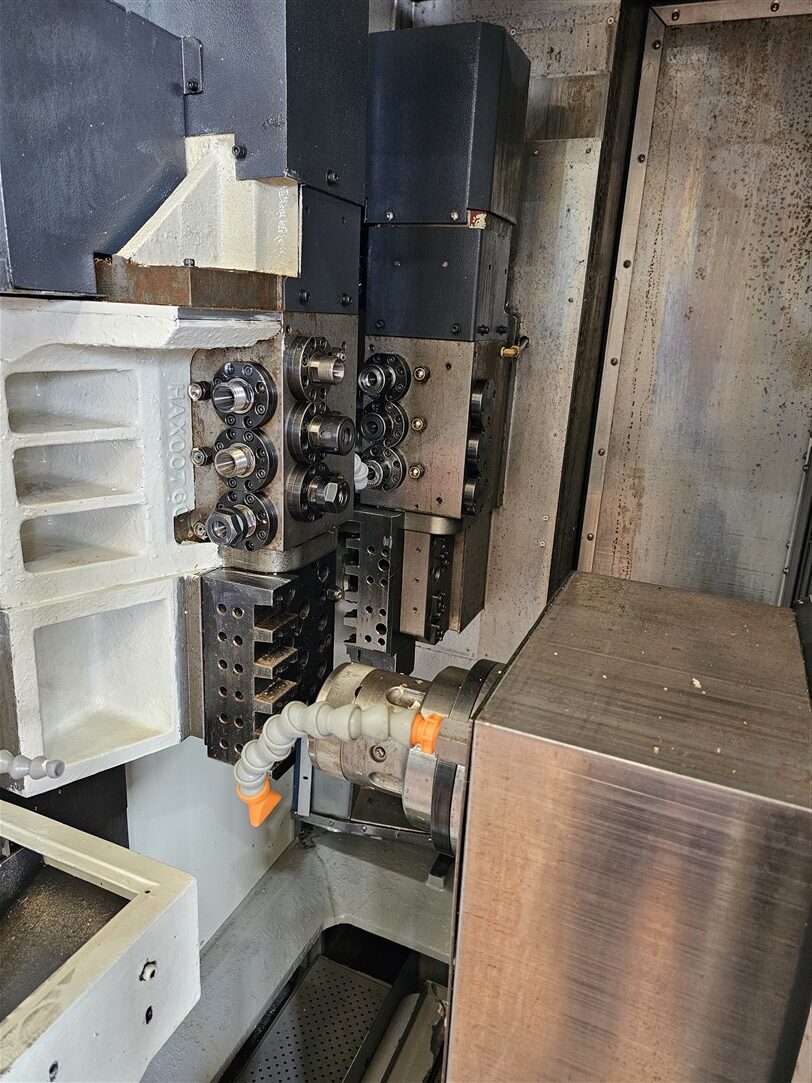

| Main Spindle Block Tooling System | |
| Axial driven | 3 pieces |
| Radial driven | 3 pieces |
| OD tool shank fixed (20mm) | 6 pieces (5+1 part off) |
| ID tool shank fixed (20mm) | 4 pieces |
| Mill/drill heads (max 12mm dia) | ER20 collet |
| Mill/drill head speeds | 0~4000rpm |
| Axial & radial live toolin drive motor | 1.5kW |
| Sub Spindle | |
| Collet chuck type | KK5-173E/42B |
| Spindle nose | A2-5 |
| Maximum bar capacity | 42mm |
| Spindle speed | 4000rpm |
| C axis minimum programmable increment | 0.001° |
| Spindle motor (cont/30min) | 3.7kW |
| Secondary Spindle Block Tooling System | |
| Axial driven | 3 pieces |
| Radial driven | 3 pieces |
| OD tool shank fixed (20mm) | 5 pieces |
| ID tool shank fixed (20mm) | 9 pieces |
| Mill/drill heads (max 12mm dia) | ER20 collet |
| Mill/drill head speeds | 0~4000rpm |
| Axial & radial live tooling drive motor | 1.5kW |
| X axis travel | 140mm |
| Y axis travel | 410mm |
| Z axis travel | 260mm |
| X-1 axis travel | 440mm |
| Y-1 axis travel | 385mm |
| Z-1 axis travel | 315mm |
| Machine weight | 4400kg |
| Collet chuck 42mm capacity main | |
| 42mm collet secondary spindles | 30mm through feed |
| Automatic parts catcher and conveyor | |

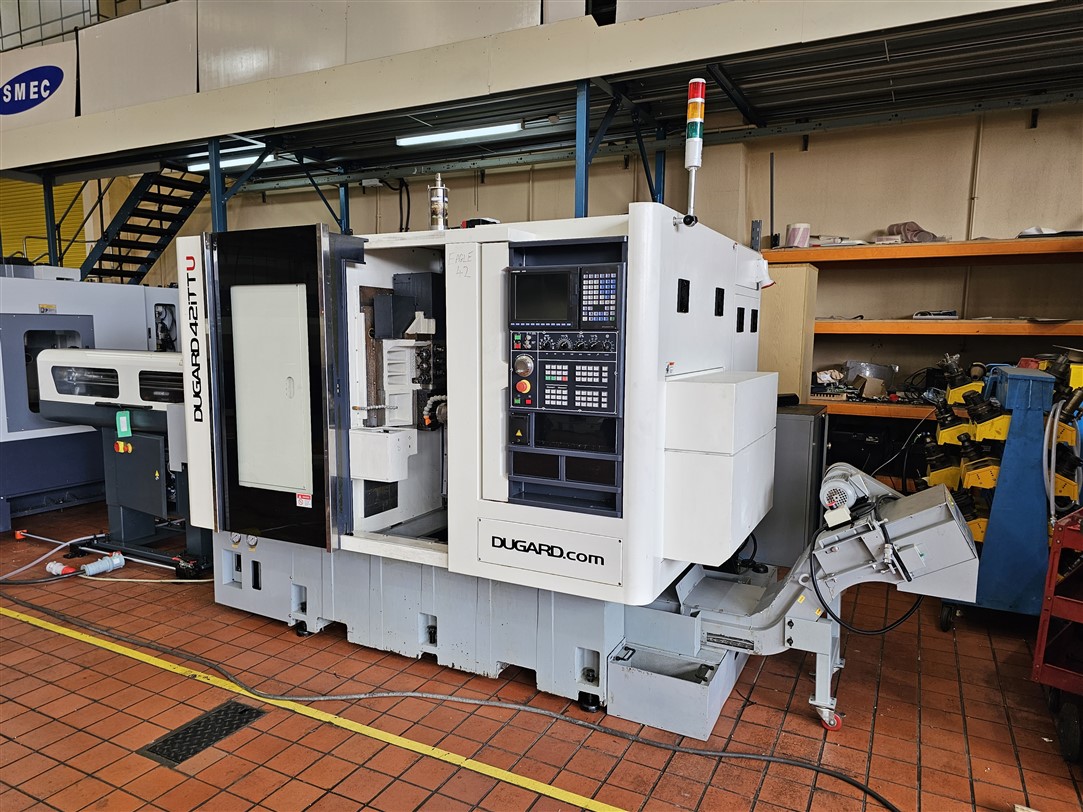

| Swarf conveyor and bin | |
| Coolant tank and pumps | |
| Fitted with LNS Alpha 65 bar loader | |
| Oil mist removal | option |
| Fire protection | option |
