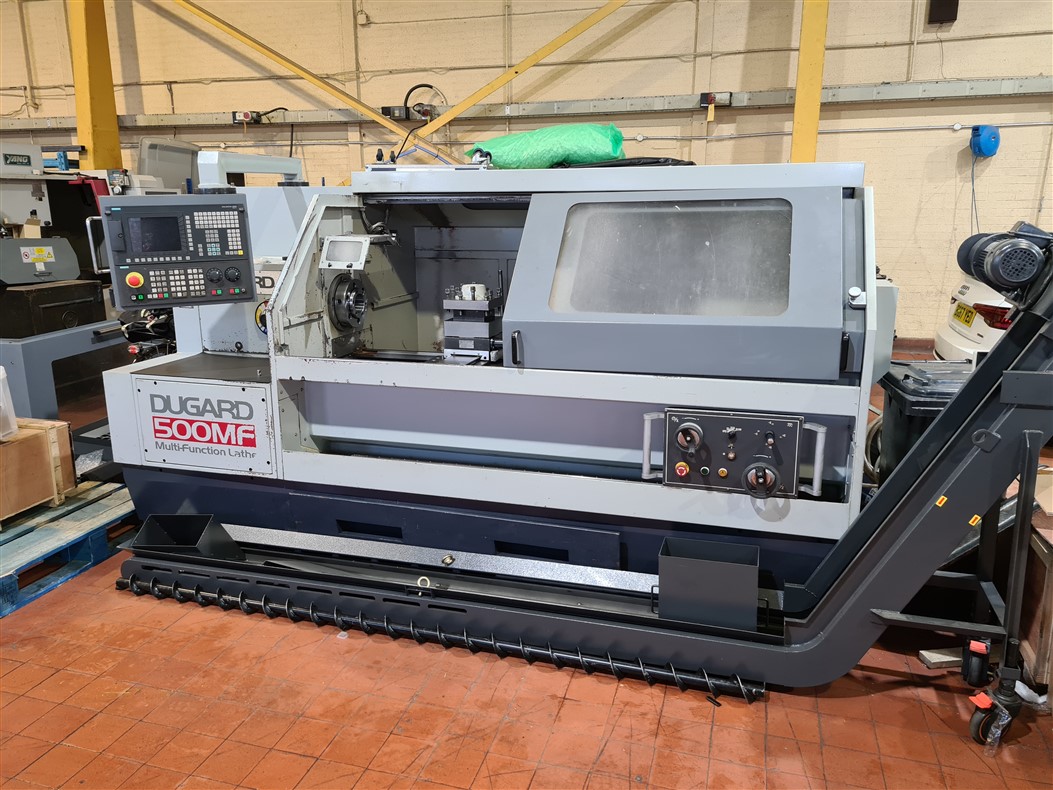

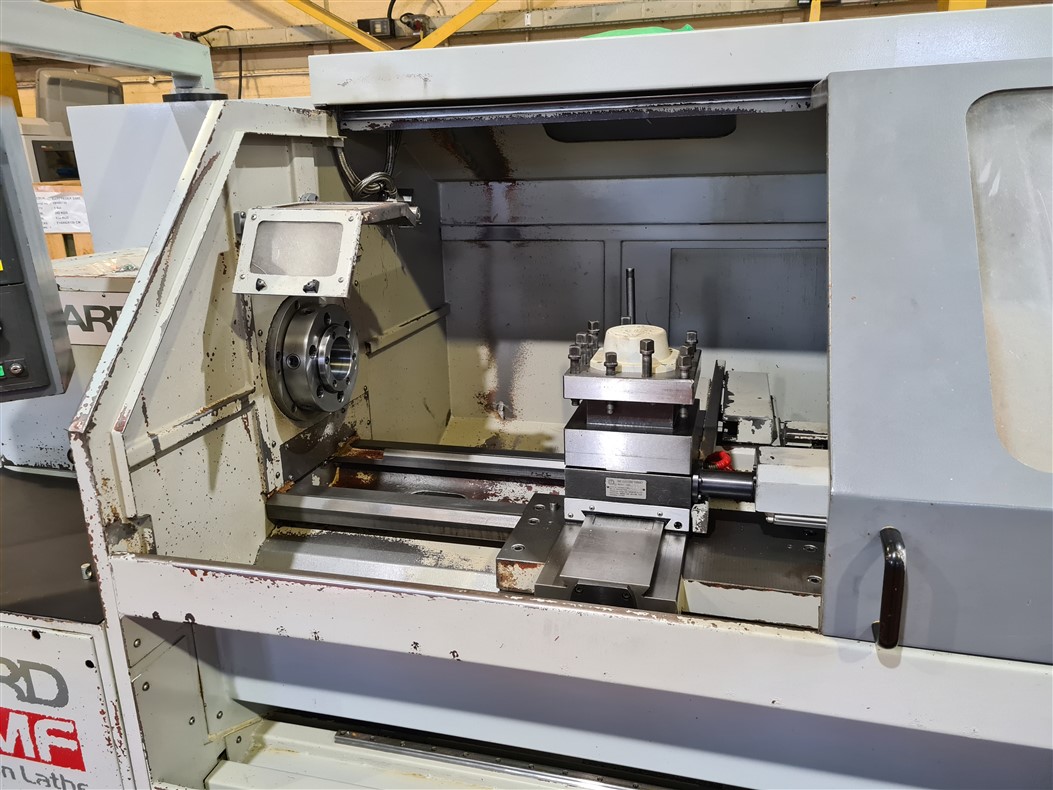

U28279 Dugard Lunan 500MF CNC Lathe
Machine Information
Used multi-function CNC lathe – Siemens 828D control with Shopturn, 500mm swing over bed, 280mm swing over cross slide, 500mm turned diameter, 250mm cross travel, 7.5kW main motor, 4 position programmable electric toolpost
Machine Features
£17,800 + VAT
Siemens 828D control with Shopturn
4 position programmable electric toolpost
58mm D1-6 cam lock
| Max swing over bed | 500mm |
| Max swing over cross slide | 280mm |
| Max turned diameter | 500mm |
| Max cross travel | 250mm |
Related products
-

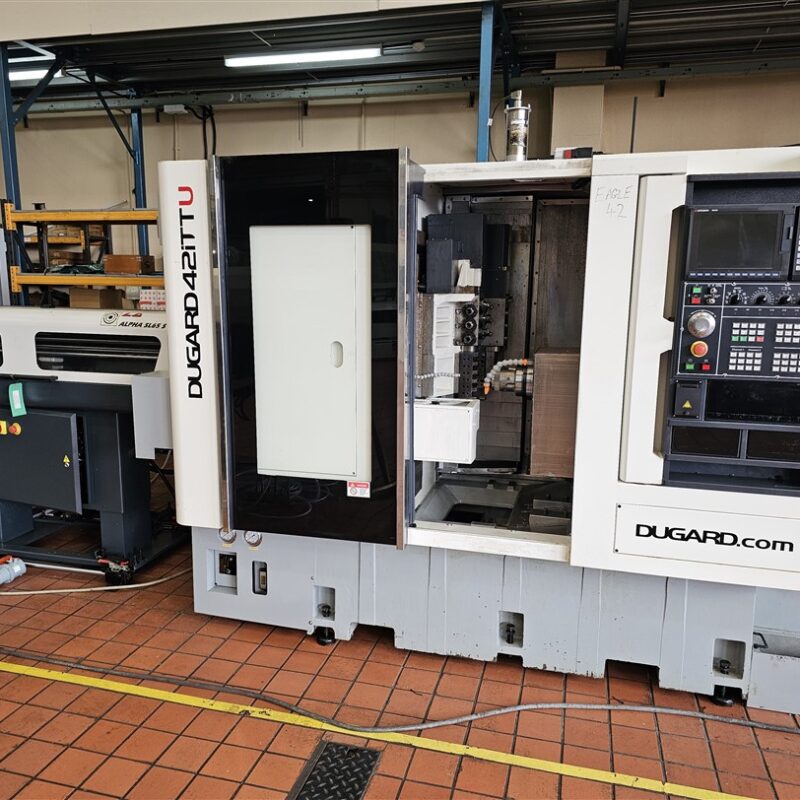

U28293 Dugard i42U Sub Spindle CNC Turning Centre
FIND OUT MOREUsed Dugard CNC turning centre with sub spindle, dual tooling, Y axis, Mitsubishi M700 control and 42 mm maximum bar capacity
-
Ex Demo Dugard i42 Twin Sub Spindle CNC Turning Centre
FIND OUT MOREEx Demo Dugard CNC turning centre with sub-spindle, Y axis, 42mm bar capacity and Fanuc 0iTF control with automatic parts catcher and conveyor
-
U28275 Dugard ECO 1000 Vertical Machining Centre
FIND OUT MOREUsed Dugard VMC with Siemens 828D control, 1000/600/600mm X/Y/Z axis, 80~8000rpm spindle speeds, BT40, 24 station ATC
Superior-quality CNC machines
Made in China
SPECIFICATION
| Max swing over bed | 500mm |
| Max swing over cross slide | 280mm |
| Max turned diameter | 500mm |
| Max cross travel | 250mm |
| Max workpiece length | 1400mm |
| Max turned length (with electronic manual turn handwheel) | 1320mm |
| Spindle bore diameter | 77mm |
| Spindle nose | D1-8 |
| Main motor (inverter drive) | 7.5kW |
| Speeds, 3 range gearbox | 20~1620rpm |
| Rapids X | 6000 mm/min |
| Rapids Z | 8000 mm/min |
| 4 position programmable electric toolpost | 25 x 25mm |
| Tailstock diameter quill 75mm | 5 M/T |
| Tailstock quill travel | 150mm |
| Machine dimensions | 3200 x 1550 x 1850mm |
| Machine weight | 3000kg |
