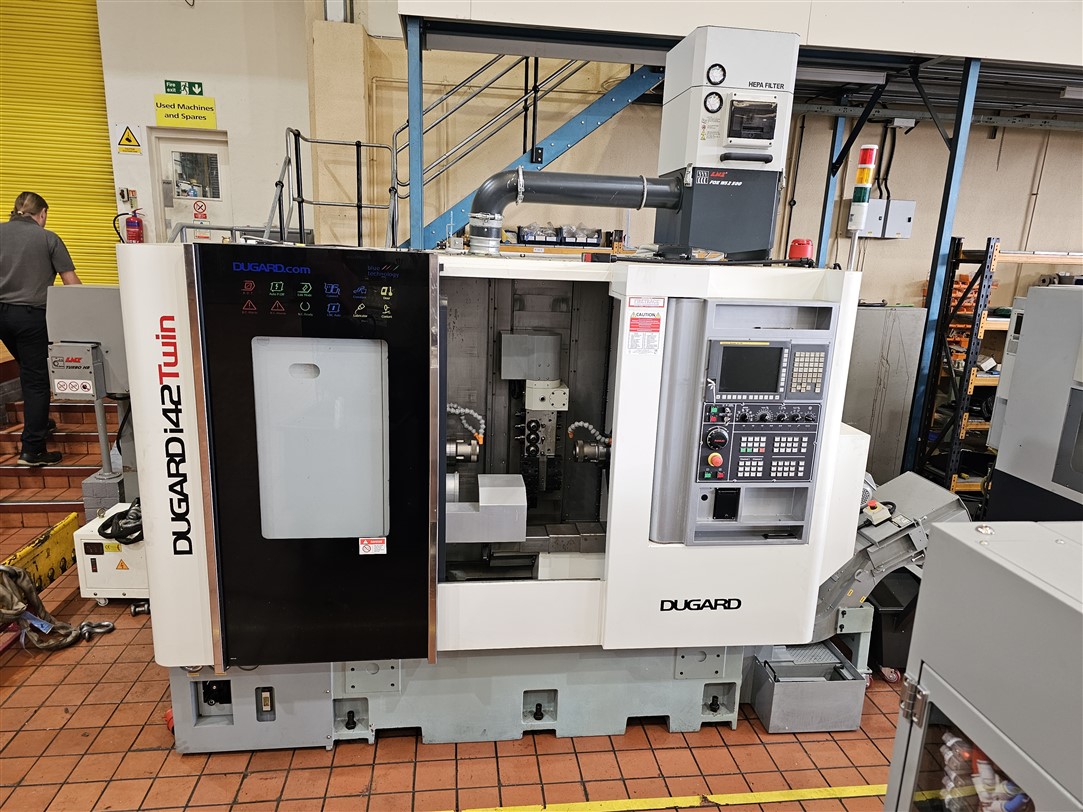

Ex Demo Dugard i42 Twin Sub Spindle CNC Turning Centre
Machine Information
Ex Demo Dugard CNC turning centre with sub-spindle, Y axis, 42mm bar capacity and Fanuc 0iTF control with automatic parts catcher and conveyor
Machine Features

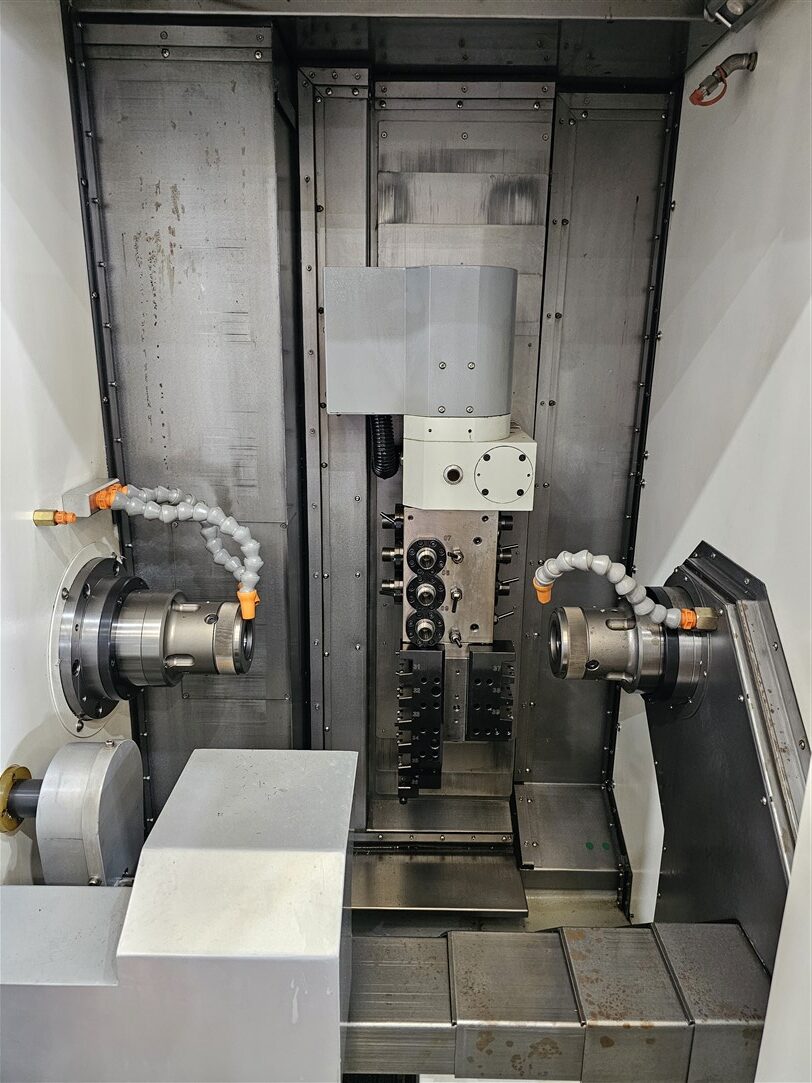

Sub spindle
Y axis
Fanuc 0iTF control
B axis
| Automatic parts catcher and conveyor |

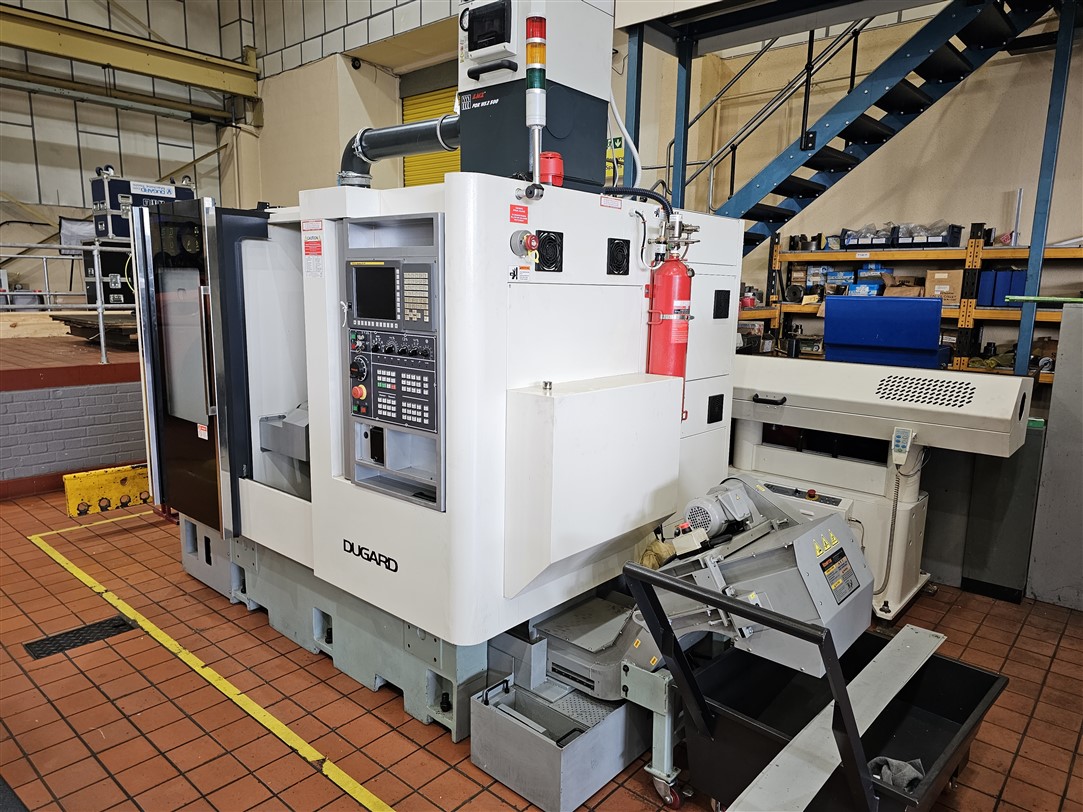

| Swarf conveyor and bin |
| Coolant tank and pumps |
Related products
-
Hanwha XD 12/16III Sliding Head CNC Lathe
FIND OUT MOREStrong machining performance and high productivity with Fanuc control, sub spindle, 15000rpm, 21 tools and 12/16mm maximum turning diameter.
-
SMEC SL4500 / SL4500M Slant Bed CNC Lathe
FIND OUT MORECNC lathe from SMEC with Fanuc 0iMF control, mill/drill option, 775mm swing over bed,630mm swing over cross slide, 21″ chuck, 117.5mm bar, 12 tools.
-
SMEC SL2500BY / 2500BSY CNC Turning Centre
FIND OUT MOREMade in Korea. Y axis, C axis, sub spindle, 650mm max swing diameter, 360mm max turned diameter, 520 max turned length, 250mm chuck and 77mm bar capacity.
-
SMEC PL80C / 80LC Slant Bed CNC Turning Centre
FIND OUT MOREMade in Korea. Big bore / long bed, big bore models – Fanuc 0iTD control, 1030mm max swing diameter, 900mm max turned diameter, 2000/3000mm max turned length, 321mm spindle bore, 12 station turret.
Superior-quality CNC Machines
Taiwan
SPECIFICATION
| Maximum bar capacity | 42mm |
| Maximum turning length | 150mm |
| Spindle collect chuck type | KK5-173E/42B |
| Spindle nose | A2-5 |
| Spindle speed | 6000rpm |
| C axis minimum programmable increment | 0.001° |
| Spindle motor (cont/30min) | 7.5kW |
| OD tool shank static (20 x 20mm) | 9 pieces |
| ID tool shank static (20mm) | 7 pieces |
| Mill/drill axial tools | 6 off |
| Mill/drill radial tools | 3 off |
| Mill/drill heads | ER20 collet |
| Mill/drill head speeds | 0~4000rpm |
| Axial & radial live tooling drive motor | 1.5kW |
| Collet chuck type sub spindle | KK5-173E/42B |
| Sub spindle nose | A2-5 |
| Sub spindle thru hole diameter | 30mm |
| Sub spindle speed | 2000rpm |
| Sub spindle C axis minimum programmable increment | 0.001° |
| Sub spindle motor (cont/30min) | 3.5kW |
| Machine weight | 3800kg |
| Automatic parts catcher and conveyor | |
| Swarf conveyor and bin | |
| Coolant tank and pumps |
