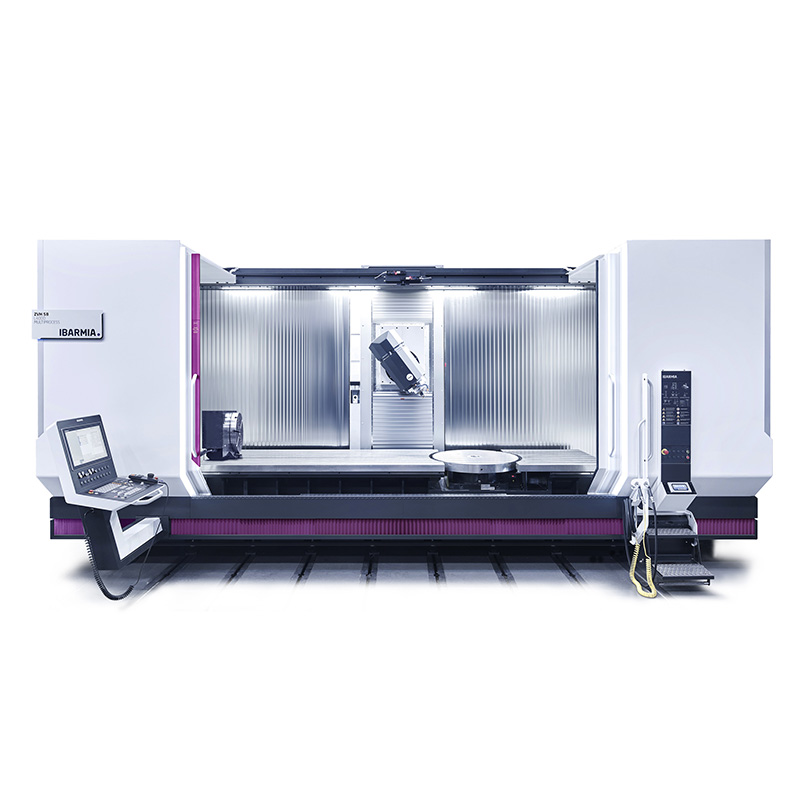

Ex Stock Ibarmia ZVH58/L4000 EXTREME Travelling Column 5 Axis Machining Centre
Machine Information
Stock model Ibarmia ZVH 58/L4000 extreme travelling column 5 axis machining centre with Heidenhain control, 4000mm X axis, integrated rotary table and 60 tools
Machine Features
Heidenhain TNC 640 HSCI control
C axis Integrated rotary table
| X axis | 4000mm |
| Y axis | 1000mm |
| Z axis | 1100mm |
| B axis head | ±105° |
Related products
-
Dugard 1000XP Vertical Machining Centre
FIND OUT MOREMade in Taiwan. With Fanuc 0iMF control, BT40 spindle, 1050mm X axis, 540mm Y axis, 560mm Z axis, 20kW power, 20~12,000rpm spindle speeds (11,000rpm Fanuc) and 36 station twin arm ATC.
-
Ex Stock Dugard 760 Vertical Machining Centre – Siemens
FIND OUT MOREEx stock Dugard vertical machining centre with Siemens control, 762/440/460mm X/Y/Z axis, 20~11,000rpm spindle speeds, BT40, 16 station ATC
-
Dugard HD1363B Heavy Duty Boxway Vertical Machining Centre
FIND OUT MOREMade in Taiwan. Dugard HD 1363B – Heavy Duty VMC – Fanuc/Seimens/Heidenhain control options, X axis 1300mm, Y axis 630mm, Z axis 600mm, table size 1450 x 600mm, speed range 20~6000rpm, 24 station ATC.
-
Dugard 550 Vertical Machining Centre
FIND OUT MOREMade in Taiwan. Cost effective VMC with Fanuc, Siemens and Mitsubishi control options, 550/440/460mm X/Y/Z axis, 20~11,000rpm spindle speeds, BT40, 16 station ATC.
Superior quality CNC machines
Made in Spain
SPECIFICATION
| X axis travel | 4000mm |
| Y axis travel | 1000mm |
| Z axis travel | 1100mm |
| Automatic tool changer | 60 tools |
| C axis Integrated rotary table | ±360° |
| Milling spindle | 84kW |
| 452Nm | |
| 12,000rpm | |
| HSKK A-100 | |
| Direct measurement system in all linear axes | |
| LED lighting of the work area | |
| Chip conveyor | |
| Fully enclosed working area, steel covers | |
| Extra side windows for extra long workpieces | |
| Preparation for mist aspiration | |
| Spray gun | |
| Air gun | |
| 19" touch screen | |
| Heidenhain HR-510 portable electronic hand wheel | |
| Climatised electrical cabinet |
