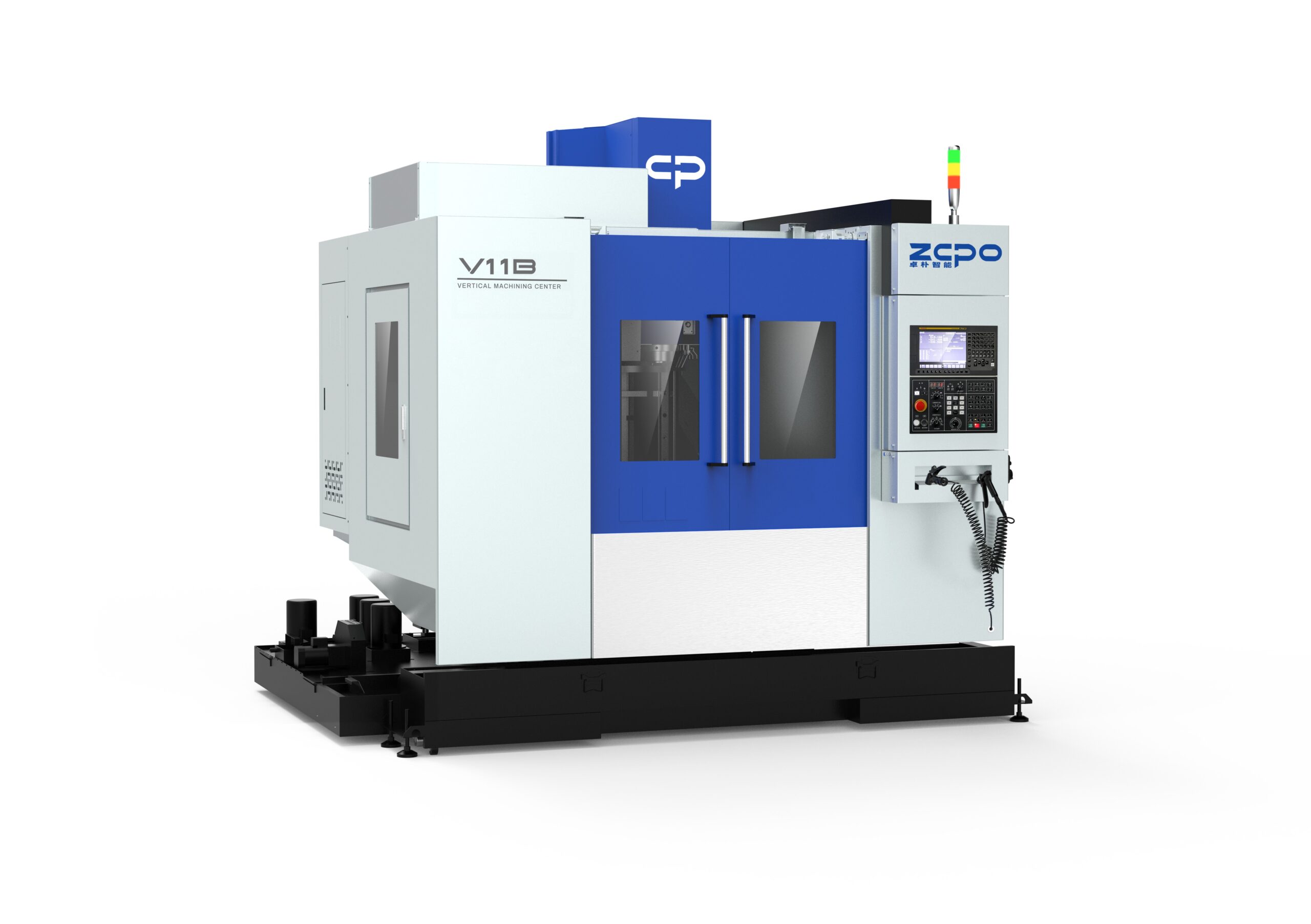

Zopo V11B Vertical Machining Centre

Machine Information

Cost effective high specification high precision vertical machining centre made in China, using all Taiwanese key components such as spindle, ballscrews, heavy duty roller linear ways, auto tool changer. With direct drive spindle 12,000 rpm (opt 15,000), table size 610 x 1300mm, travels X/Y/Z 1100/610/630mm, BBT40 spindle, ATC capacity 24 (opt 30) tools. Choice of Fanuc, Siemens Mitsubishi and Heidenhain controls.

Machine Features

Unique arc-shaped base design using finite element analysis, the internal reinforcement rib layout giving better machining rigidity compared to competitors machines

The base features a large-span structure with two 45mm roller linear guideways, providing the machine with very strong load-bearing capacity while meeting the high speed and rigidity requirements during heavy cutting

Worktable size610 x 1300mm
T-slot size5-18x100mm
Max table load900kg
X/Y/Z axis travel1100/610/630mm
Categories: , , ,

Related products

Superior-quality CNC Machines

China

SPECIFICATION

Worktable size610 x 1300mm
T-slot size5-18 x 100mm
Max table load900kg
X/Y/Z axis travel1100/610/630mm
Column front to spindle centre667mm
Table surface to spindle nose120~750mm
Spindle taperBBT40
Spindle power11/15kW
Max spindle speed -direct drive12,000 (opt 15,000) rpm
Max feed speed12,000mm/min
Rapid feed speed36/36/32 m/min
Tool magazine capacity24 (opt 30) tools
Tool change time2.5 secs
Positioning accuracy0.008mm
Re-positioning accuracy0.004mm
Machine dimensions3150 x 2300 x 2850mm
Machine weight7000kg
