U28278 Dugard 760 Vertical Machining Centre

Machine Information

Used Dugard 760 VMC with Siemens 828D control, 2016 model, 20 tool twin arm ATC, 11,000rpm belt drive, 762/440/460mm X/Y/Z axis travels, 75~535mm spindle nose to table

Machine Features

Siemens 828D control with Shopmill

Manufactured in 2016

Price on application

762mm X axis traverse
440mm Y axis traverse
460mm Z axis traverse
75~535mm spindle nose to table
Categories: , ,

Related products

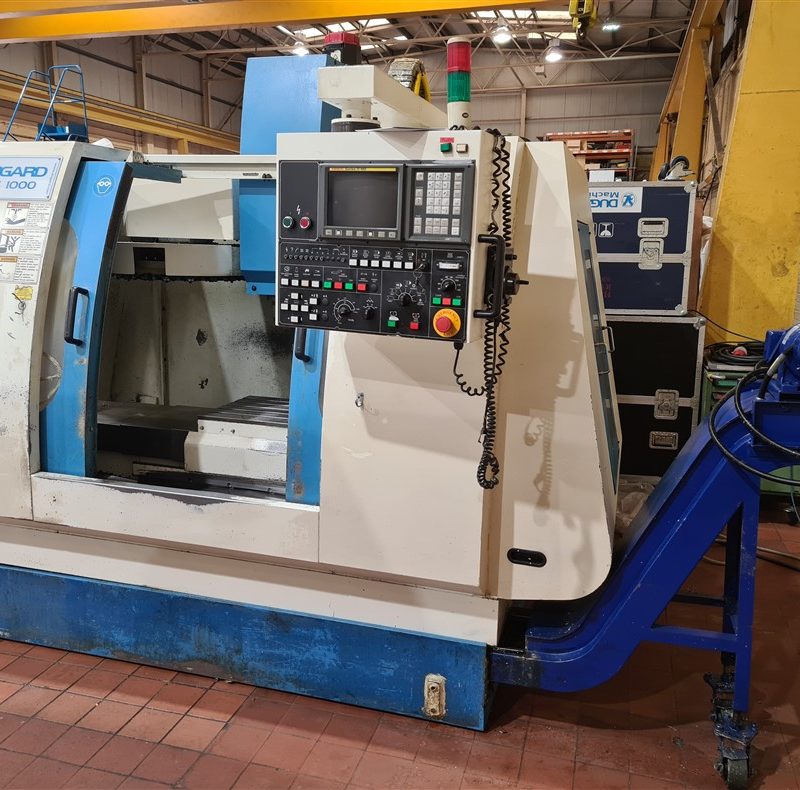

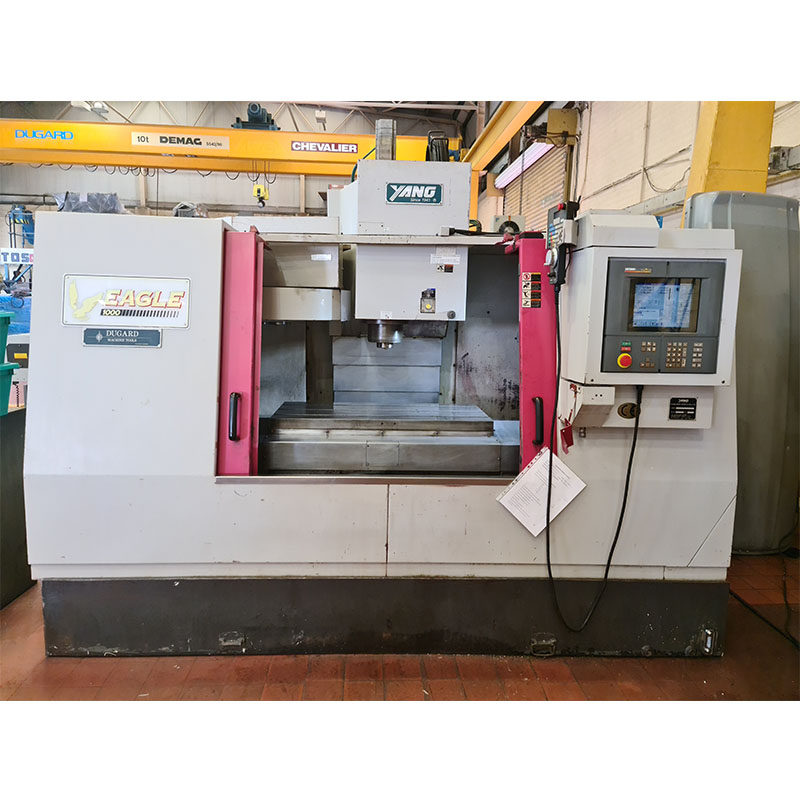

Used Dugard vertical machining centre

Made in Taiwan

SPECIFICATION

X axis traverse762mm
Y axis traverse440mm
Z axis traverse460mm
Spindle nose to table75~535mm
Rapid traverse (X, Y)36m/min
Rapid traverse (Z)30m/min
Max cutting feed rates12m/min
Positioning0.01mm
Repeatability±0.003mm
Spindle taperBT40
Spindle speeds11,000rpm
Tool capacity, twin arm20
Spindle power11/8.25kW
Spindle centre to column420mm
Max tool diameterØ75mm
Max tool length210mm
Max tool weight7kg
Tool to tool change time2.2 sec
Table size910 x 380mm
T slots16 x 80 x 4mm
Table load800kg
Power requirement20kVA
Coolant tank capacity150 L
Footprint2596 x 1935mm
Machine weight3650kg
