Ex Stock Ibarmia ZVH45/L3000D STAR Travelling Column 5 Axis Machining Centres
Machine Information
Stock model Ibarmia ZVH 45/L3000D Star travelling column 5 axis machining centre with Heidenhain control, cooled main spindle, integrated rotary table and 40 tools
Machine Features
Heidenhain TNC 640 HSCI control
Integrated rotary table
| Cooled main spindle | 46kW/200Nm S6-40% - 30kW/130Nm S1-1000%, 12,000rpm |

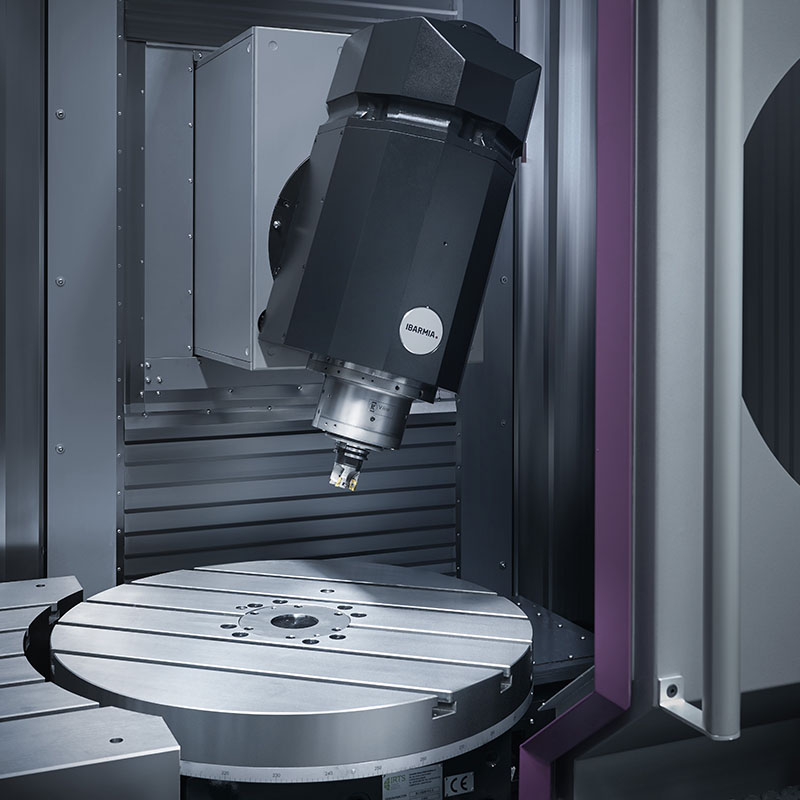

| Continuous NC tilting head | ±105° with direct drive technology |
Related products
-
Ibarmia T Series Universal 5 Axis Machining Centres
FIND OUT MOREHuge capacity 5 axis capability with the optional facility to carry out heaving turning operations with options for grinding and gear skiving
-
Kitamura Mycenter-4XiD Vertical Machining Centre
FIND OUT MOREArumatik-Mi control, X axis 1020mm, Y axis 510mm, Z axis 510mm, 500 x 1120mm table size, 1000kg table load, BT40, 24 tools, 7kg maximum tool weight.
-
Ibarmia Z Series Travelling Column 5 Axis Machining Centres
FIND OUT MORE3, 4 and 5 axis machining centers with very flexible configuration, available with built in rotary tables for 5 axis machining and vertical turning
-
Dugard RMV500 APC Vertical Machining Centre
FIND OUT MOREMade in Taiwan. Twin pallet VMC. X axis – 500mm, Y axis – 300mm, Z axis – 280mm. 500 x 300mm revolving twin pallets, 100kg max loading/pallet, revolves to 1800 in 2 seconds.
Superior quality CNC machines
Made in Spain
SPECIFICATION
| X axis travel | 3000mm |
| Y axis travel | 800mm |
| Z axis travel | 800mm |
| Automatic tool changer | 40 tools |
| Integrated rotary table D800 with continuous movement | ±360° |
| Coolant through spindle system | 22 bar |
| Direct measurement system in all linear axes | |
| LED lighting of the work area | |
| Chip conveyor | |
| Fully enclosed working area, steel covers | |
| Extra side windows for extra long workpieces | |
| Preparation for mist aspiration | |
| Spray gun | |
| Air gun | |
| 19" touch screen | |
| Heidenhain HR-510 portable electronic hand wheel | |
| Climatised electrical cabinet |
